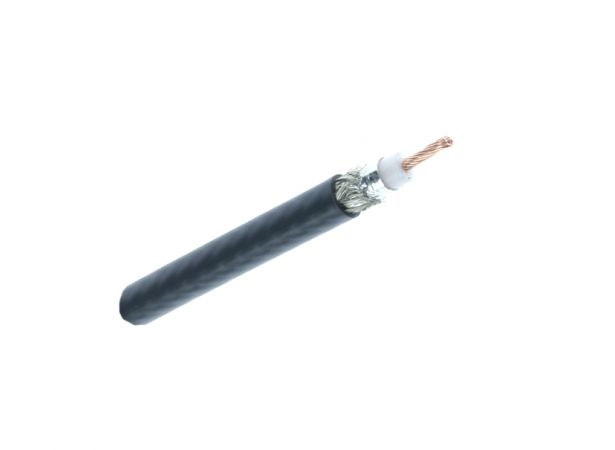

Aeroflex50 coaxial cable

A modern, 50 Ohm, coaxial cable with excellent performance suitable for Flarm, VHF and transponder radio signals. All round, a high-end product based on the latest state of coaxial cable technology. The dimensions are comparable to the Belden H155, but it has over 10 percent less attenuation. At 106 dB, the shielding level is around 20 percent higher than the value of H155 or Aircell-7. Aeroflex is manufactured according to the requirements for aviation. The cable is halogen-free and has the following specifications:

• - LSNH (low smoke non halogen)
• - FRNC (flame retarding non corrosive)
• - Diameter: 5,4 or 7,3 mm
• - Weight: 42 or 69 gram per meter
• - Impedance: 50 Ohms
• - Operating temperature: -45°C to 75°C
• - Loss: 1.9 dB / 10 m at 1000 MHz
