Air Traffic Display (Flarm)

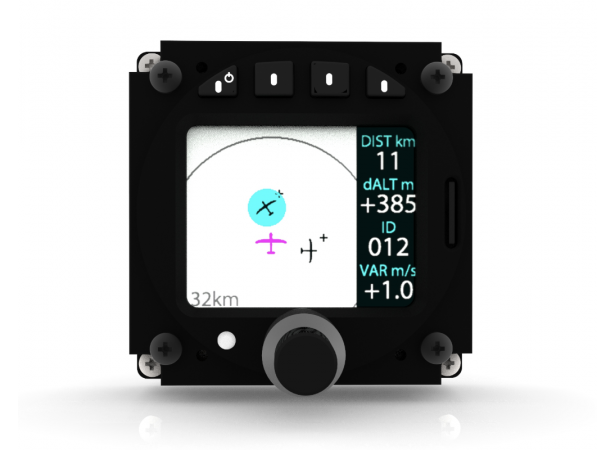

AIR Traffic Display is a display solution for traffic data. It features robust hardware, a sunlight readable display and advanced functionality reducing flightcrew workload and increasing traffic awareness. Air Traffic Display works well with many collision avoidance devices like TRX, (Power)FLARM, or systems with GARMIN TIS interface.

Display of 3D Traffic, e.g. FLARM or ADS-B and 2D traffic e.g. Transponders (depends on connected traffic system)
Brilliant, sunlight readable display
Optical and aural traffic warnings (alert sounder integrated)
Optical and aural obstacle warnings (alert sounder integrated, depends on connected traffic system)
Target identification via FLARMNet Database. Updateable via microSD Card
Tactical functions for gliderpilots (circling detection, climb-rate-filter)
Tracking of targets out of reception range
Software updates via microSD-card

Compatible and easy to install AIR Traffic Display is compatible to all FLARM compatible systems, many ADS-B-IN devices, and with systems that use the GARMIN TIS protocol. It directly works with TRX-Devices, FLARM-Devices, PowerFLARM-Devices, LX-FLARM and many other units from different manufacturers without configuration. Included with delivery is a standard-FLARM-Cable (RJ45). AIR Traffic Display can directly replace an old Butterfly Display or a different FLARM-Display. It is covered by Minor Change Approvals for TRX-Devices or FLARM-Compatible Systems as well as EASA Standard Changes. It therefore can be installed into a broad range of aircraft without re-certification. Technical Specifications:

Dimensions (without rotary knob):
- for ATD-11: 55 x 100 x 50 mm
- for ATD-57: 62 x 62 x 26 mm
- for ATD-80: 83 x 83 x 26 mm
57 mm or 80 mm Standard Cutout
Weight ca. 140 g or 210 g
Input Voltage: 9 to 32 V DC
Interfaces: RS232 FLARM Protocol, GDL90 and RS232 GARMIN TIS

In the box:

ATD-11, 57 or 80 main unit
Panel screws
B394 cable with RJ45 connection (for Flarm or similar devices)
Documentation
