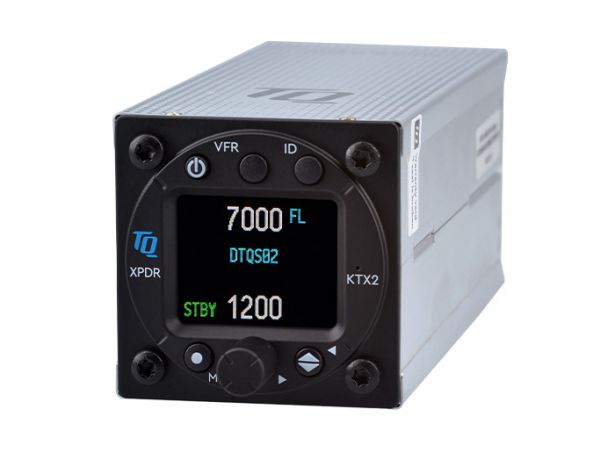

KTX2 mode S transponder

Snel overzicht

The newly developed Mode-S Transponder KTX2 incorporates latest technology – The result is a highly efficient airborne equipment, offering low power consumption, small dimensions and low weight. As a Class 1 Transponder with an operational range up to 35.000ft and 250kt the KTX2 is ideal not only for microlight aircraft and gliders, but also for a major part of aircraft of general aviation up to 12500 lbs MTOW (VFR and IFR). It features a built-in high-precision, temperature compensated altitude encoder to connect to the static port.

The KTX2 is available in three models. Beside the standard version for installation in a Ø57mm (2¼“) round slot, there is also a 'mini'-version in landscape or portrait shaped housing. Due to a housing length of only 144mm (5-2/3”) the transponder can easily be installed in cockpits where there is limited space. For mobile use, e.g. on balloons, the KTX2 is available as a portable station.
Standard: 144 x 63,5 x 62 mm
Mini Landscape: 144 x 63 x 46 mm
Mini Portrait: 144 x 46 x 63 mm

Future features
The hardware of the KTX2 is designed to deliver precise position data (extended squitter) for ADS-B. Via the RS232 interface, an appropriate GPS receiver can be connected (supplemental ETSO-C166b certification in preparation).
Possibility of firmware upgrades

Technical Data:
Type: Mode-S Transponder Class 1 Level 2els
Approvals: ETSO-C112d, ETSO-C88a / TSO-C112d, TSO-C88a, RTCA DO-178C / ED-12C Level D, RTCA DO-160F / ED-14F
Operating voltage: 9V - 33V DC
Power consumption: 0,2 - 1.0A (dependent from number of requests)
Transmission power: ≥ 24dBW (250W)
Transmission frequency: 1090 ± 1MHz
Operating temperature: -20°C, +55°C
Shock: 6g operation, 20g damage tolerance
Weight: 360g
Max. operational altitude: 35.000 ft
Max. operational speed: 250 kt / 463 km/h
Dimensions: 144 x 62 x 62mm (Standard) / 144 x 63 x 46mm (Mini Landscape) / 144 x 46 x 63mm (Mini Portrait)

van € 1.999,00

Special Price Incl. BTW: € 1.799,00 Excl. BTW: € 1.486,78
