LXNAV certified Air Data Indicator 2 (ADI2)

*NOW AVAILABLE FOR PRE-ORDERING*

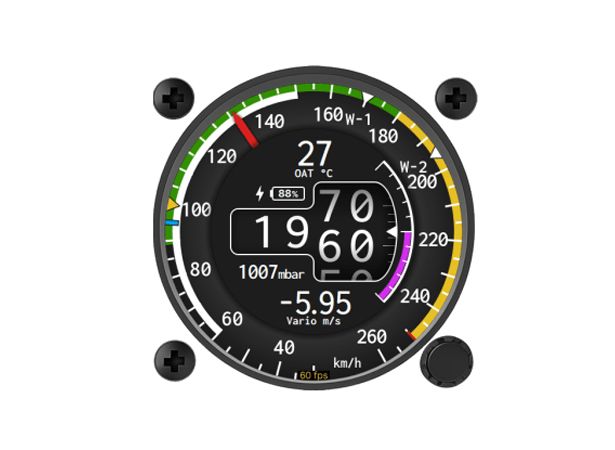

LXNAV's new EASA certified STC ADI2 combines indicated airspeed, altitude, vertical speed and an OAT indicator together with a 3h backup battery in one housing.
The unit has standard dimension of 80 mm diameter, very bright display and a sample rate of 100 times per second.
The ADI2 allows pilots to define custom speed arcs and markings fully in line with CS 22 (AMC 22.1545), ensuring clear and compliant visual guidance.
Additional markings can be entered, for example, to indicate different maximum flap speeds for various flap settings. For specific speeds, simply refer to your airplane’s flight manual, typically found in Section 2.

Included in delivery:
- Main unit
- Power cable
- OAT probe
- EASA declaration of conformity


Technical specifications:

Display: 2.5/3.5” (8,9cm Diagonal)
Pixels: 320 x 240
Buttons: 1 push/rotary button
Voltage input: 8 - 32V DC
Power consumption: 90 - 140mA depending on brightness and options
Weight: 200/315g
Certification: EASA STC approval for 494 types
Dimensions:
L= 62/81mm
W= 62/81mm
D= 40/45mm
