LX g-meter

Snel overzicht

Intuitive standalone digital G-meter with an optional built-in Flight recorder

Standalone G-meter indicates and logs g-forces with an integrated high precision digital pressure sensor and inertial platform. The unit has standard dimension of 57 mm diameter, very bright display and a sample rate of 100 times per second.

3 Push Buttons. SD Card.
Used for a simplified handling during the flight or ground operations. Micro SD card for data exchange (SW update and Flight downloads).

Inertial platform with +-8g accelerometer. Device is showing current g-load by the needle as well as a navbox and it’s min-max values as a bar. Last flight min/max load navboxes are persistent until the next flight. Min/Max limits with Warning zones can be defined.

MicroSD Card. Ambient Light Sensor.
MicroSD card socket for data exchange and ALS for energy saving.

Real Time Data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness colour display.

The logbook menu displays the list of flights. If the RTC time is set properly the take-off and landing time shown will be correct. Each flight item consists of the maximum positive g-load, the maximum negative g-load from the flight and the maximum IAS. This function is available only with the optional flight recorder.
Incl. BTW: € 477,95 Excl. BTW: € 395,00
Incl. BTW: € 477,95 Excl. BTW: € 395,00

LX G-meter

More Views

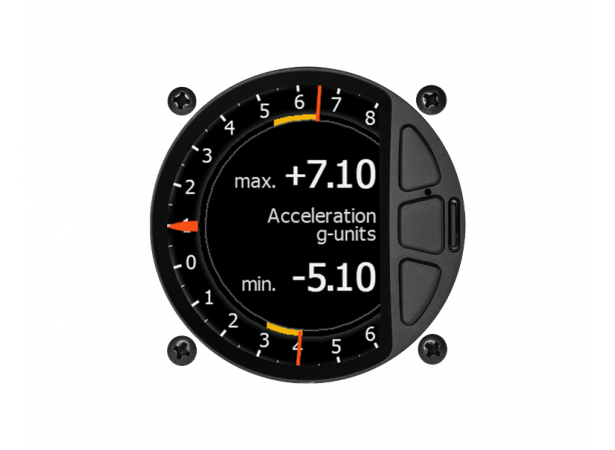

  • LX G-meter
  • G-meter menu
