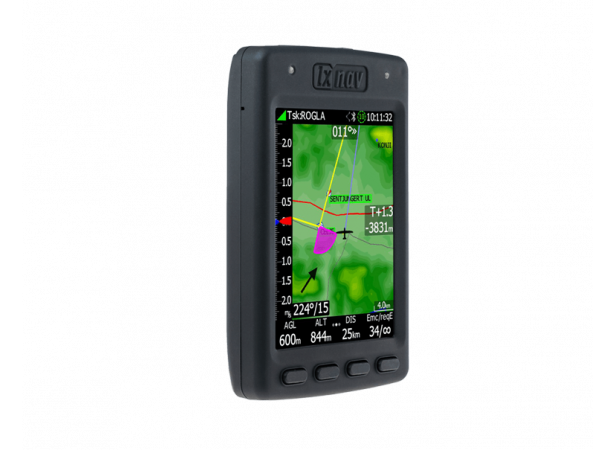

Nano 4

Snel overzicht

The Nano4 is a flight recorder designed according to the highest level IGC specification with retina touchscreen. The IGC recorder is capable of recording JET engine noise. It features an integrated 50-channel GPS receiver with built-in antenna. Using smart power management it allows up to 36 hours of operation and up to 14 hours of operation with screen at full brightness. Integrated Bluetooth is used for easy data exchange with a PDA. Built-in Wi-Fi module. Flights are stored directly in IGC format to 4Gb solid state memory. The battery is charged when the flight recorder is connected to a computer or wall charger via Micro USB connector.

Incl. BTW: € 699,00 Excl. BTW: € 577,69
OF

Nano 4

More Views

Details

Main features

  • Easy handling. (Turn on and go)

  • Touch screen and seven buttons for simple and easy operation.

  • Integrated Wi-Fi and Bluetooth module compatible with iOS and Android systems.

  • Flight recorder according to high-level IGC specification.

  • 2048bit digital signature.

  • Advanced engine noise level recording. (also for JET engines)

  • Built-in high resolution variometer with adjustable volume.

  • Task and waypoint navigation (CUP compatible).

  • Airspace display (CUB compatible or from LXNAV database).

  • Airports from LXNAV database.

  • Wind indication

  • Final glide calculation

  • Up to 36 hours with advanced power management.

  • Up to 14 hours of operation with screen.

  • Unlimited storage for flights. (+28000 hours at 1 sec interval)

  • Flights stored in IGC file format are downloadable through USB, Bluetooth or Wi-Fi.

  • Simple signalling LED's

  • Nanoconfig program for creating declaration and system settings (for PC and Android)

Hardware

  • 3.5'' Sunlight readable screen with VGA (640*480) resolution

  • low power ARM processor

  • 4 GBytes of solid state memory

  • 7 buttons (1 power on, 2  zoom buttons and 4 screen buttons)

  • 50-channel GPS receiver

  • Plug and play USB interface (mass storage device), compatible with all operating systems (MS Win, Linux, Mac OS)

  • Advanced engine noise level sensor. (also for JET engines)

  • High resolution variometer same technology as on V9/S80 vario

  • Built-in vario speaker

  • High resolution pressure altitude sensor measures up to 30000m (100000ft)

  • Ineretial platform 3 axis accelerometer and 3 axis gyroscope.

  • Integrated Li-Ion battery delivers you up to 36 hours of operation

  • Easy battery charger via USB port on your notebook, PC or wall charger

  • Robust  ABS plastic housing

Input and output

  • USB interface (mass storage device)

  • serial RS232 interface with NMEA output

  • Bluetooth module (Android and iOS)

  • Wi-Fi module

Size and weight

  • Outline dimension 69*105*17mm

  • Weight: ~145g

Accessories

  • Nano Power DC-DC converter input up to 24V converts to 5V/1A

  • Connection cable to Oudie CC-NP-OUDIE

  • Connection cable to PDA/PNA (IPAQ38xx, HP31x) CC-NP-IPAQ

  • Connection cable to stanadard RS232 (DB9) CC-NP-232

  • Connection cable to RJ11 (IGC standard)  CC-NP-IGC

  • Connection cable to Kobo  CC-NP-KOBO
