TQ accessories

The scope of the delivery of the TQ transponders (KTX2-S/F) does not include a connector or cable set.

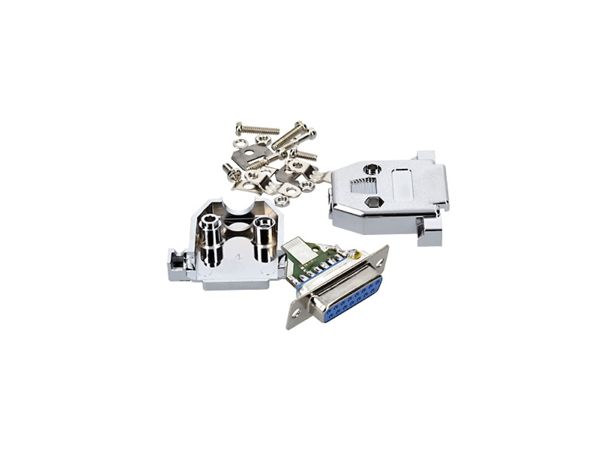

Be aware: the connector of the KTX2 contains a small PCB.

With the TQ-ADS-B out packages you can make your KTX2 transponder ADS-B suitable for out capable. The wiring harness with integrated low-noise DC/DC converter allows direct connection of the GPS receiver. You only need to connect to DC power and a transponder antenna. The NexNav GPS sensor units designed to meet the requirements of US FAA TSO C145c and intended for installation on board civil aircraft. Their primary function is to provide aircraft position, aircraft velocity and precise time.

NexNav 21.000 Kit:
- NexNav 21.000 GPS receiver
- DC/DC converter integrated
- TQ KBSX4 connection cable for KTX transponder

TQ ADS-B Out KIT 2:
- Navilock NL-8339P waterproof GPS receiver
- DC/DC converter integrated
- TQ KBSX1 connection cable for KTX transponder

TQ ADS-B Out KIT 3:
- Navilock NL-3330 GPS receiver
- DC/DC converter integrated
- TQ KBSX1 connection cable for KTX transponder
