Wing support

Snel overzicht

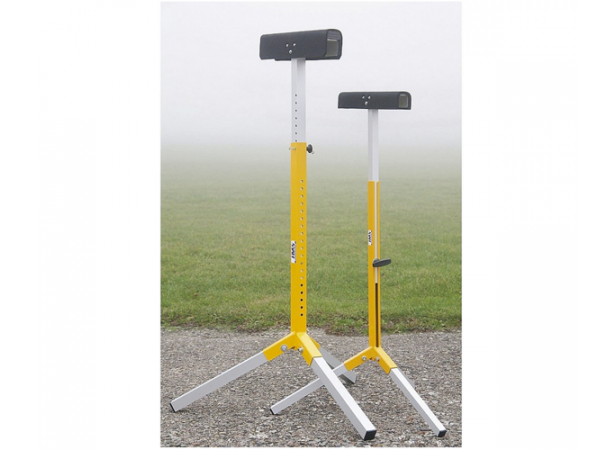

This wing support is designed as a solid foldable telescopic tripod with tiltable top, which is covered by smooth and adhesive rubber. The wing support takes only little space when the legs and top profile are folded. The main center part is welded from steel and covered by yellow powder coating. All other main parts are made from anodized hardened aluminum, the screw connections are equipped with safety nuts. The height of the support can be adjusted and fastened with an adjusting screw. Suitable for assembly or to tie down the glider outside in a calm weather. Also available iso the bigger, more stable and robust Wing support XXL for heavy gliders such as open class or double seaters. This type of wing support has step by step height adjustment by locking pin instead of continuous adjustment and securing screw.

Specifications:

Normal wing support
-Height extended: 85-135 cm
-Length folded: 118 cm
-Width/height folded: 19 cm
-Maximum load: 100 kg
-Weight: 2.8 kg

Wing support XXL
-Height extended: 107-155 cm
-Length folded: 130 cm
-Width/height folded: 22 cm
-Maximum load: 120 kg
-Weight: 3.5 kg
Incl. BTW: € 115,00 Excl. BTW: € 95,04

* Verplichte velden

Incl. BTW: € 115,00 Excl. BTW: € 95,04
